Microfluidics microscopy

Even small motion is considered fast under higher magnifications! High speed microscopes allow for observation of fast phenomena and stop-motion at short exposure settings.

Recording speeds of 220 fps or 2000+ fps at a reduced resolution are achievable with our modern high-speed USB system (See the PDF at the bottom of the page for details on speeds, resolutions, exposure times and other considerations).

The MHS digital microscope is suitable for: microfluidics, cellular motion and events, motion tracking, quality control, etc.

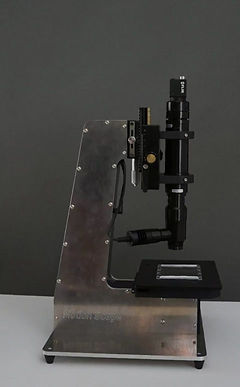

Microfluidics High-Speed (MHS) Microscope

Overview

large focus, working distance, area, microfluidics microscopy

Large working range

The precision macro and micro focus stages allow for a large range of travel (9+ cm), accommodating various microfluidic chips and other samples.

The optics are prioritized to have a large working distance (distance between the bottom of the lens to the focus plane). This distance depends on the choice of optical assembly, however typically spans a couple of cm (4+ cm).

High contrast

The bottom Bright-field illumination is set up to produce a high optical phase contrast at high intensities required for even the shortest exposures (8-110 us).

Using a diffusor the light can be conditioned in order to reduce contrast and increase penetration for various microfluidic chip designs.

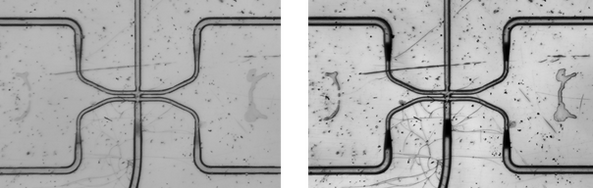

high phase contrast microfluidics microscopy, microchannels

Optics

The optical assembly can be tailored to specific needs. Please refer to the PDF below for magnifications, details and options.

All scopes come with a 6.4x variable zoom lens.

Bottom illumination is standard, top (coaxial, aka. inline) illumination is available as well.

microfluidics microscope optics options

Interface and control

The microscope connects to a PC over USB 3.1 and is interfaced with our 'viewer' software variant.

The software enables seamless video and frame acquisition as well as advanced interactive playback possibilities, image enhancements (gain, gamma, sharpening) and scale measurements.

For more about the software, see MICROSCOPY / Viewer (software) and cameras



The microscope uses precision motion stages and variable zoom for easy positioning.

Some more video clips can be found in the GALLERY / Microscopy examples

Customizability

The microscope design is flexible and can be customized for desired magnifications, illumination (bottom + coaxial top), cameras, etc. The custom solutions aim at providing the desired function at an affordable cost, achieved with modularity and sourced suppliers.

The hardware is chosen to be the best fit for ease of use, price and performance.

For details on magnification, acquisition, and illumination options as well as some other technical considerations, refer to this PDF:

rolling vs global shutter.jpg

If you already have a microscope and are looking to convert it to a high-speed microscope, check out MICROSCOPY / viewer (software) and cameras

Ask for a quote or contact us for more information at info@motion-scope.com

Looking for microfluidics pumps, optical detectors, custom chips?

We recommend www.essi.tech!

Ask and we will bundle their products with ours under one purchase.


...other microfluidics products?
